Color Correction in XMedia Recode: Tips and Techniques

With the "Color Correction" filter you can change the brightness, contrast, gamma and saturation.

Step-by-step guide: Correcting color in videos

In this guide, we'll show you how to adjust brightness, contrast, and saturation in just a few simple steps.

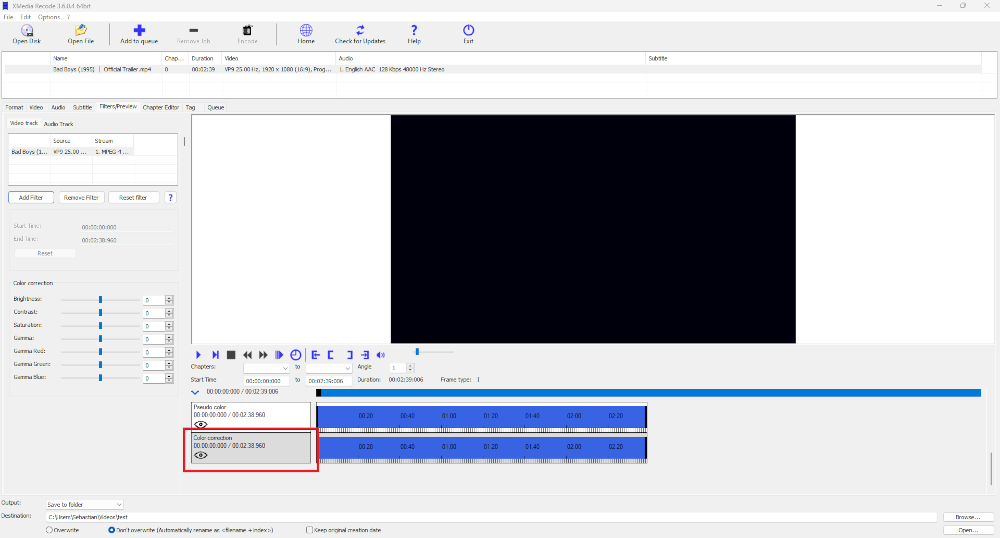

Step 1: Select the "Filter/Preview" tab and click the "Video Track" tab

You can add the Color Correction filter using the "Add filter" button.

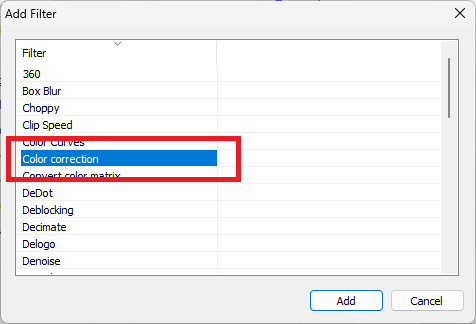

Step 2: Select Color Correction filter and click "Add"

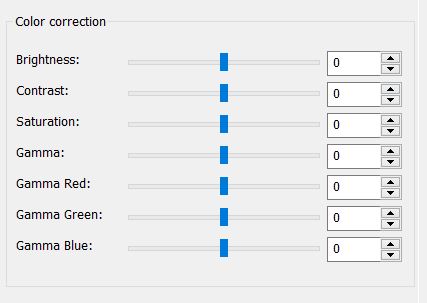

Step 3: Select Color Correction and set settings

Start Time

• Specifies the start time of the filter.

End Time

• Specifies the desired end time of the filter.

To apply the color correction filter accurately, it is important to set both the start time and the end time. The start time indicates at what point in the video the color correction begins, so that the changes take effect from a specific moment. The end time determines the point at which the color correction ends, ensuring that the filter is only applied to the desired section.

Brightness

• The Brightness function can be used to change the brightness of an image.
• Values below 0 darken the image, values above 0 lighten the image (values between -100 to 100).

Before

After (Value: 70)

Before

After (Value: -70)

Contrast

• The Contrast function changes the contrast of an image.
• A value below 0 reduces the contrast, a value above 0 increases it. (Values between -100 to 100).

before	after value: -100

before	after value: 100

Saturation

• The Saturation function increases or decreases the saturation of an image.
• Values above 0 increase saturation, values below 0 decrease saturation (values between -100 to 100)

before	after Wert: -100

before	after Wert: 100

Gamma

The gamma correction is the subjective brightness perceived by humans.

• values between -100 to 100

before	after value: 100

Advertisement

before	after value: -100

Gamma Red

• values between -100 to 100

before	after value: 100

before	after value: -100
